Deploy Hummingbot and Gateway Instances
This installs Hummingbot and Hummingbot Gateway as linked Docker containers.
Prerequisites
This configuration requires Docker Compose, a tool for defining and running multi-container Docker applications. The recommended way to get Docker Compose is to install Docker Desktop, which includes Docker Compose along with Docker Engine and Docker CLI which are Compose prerequisites.
Docker Desktop is available on:
Apple M1/M2 and other ARM machines
If you have a recent Mac that uses Apple Silicon (M1/M2) chipset or another ARM-based machine, you need to change the image tag to ensure that you pull a container that is optimized for your chip architecture.
Use an IDE like VSCode to edit the docker-compose.yml file. Change the tag for both the Hummingbot and Gateway images from latest to latest-arm to pull the images built for ARM-based machines.
You can also comment out the lines that contains latest and uncomment the lines that contains latest-arm:
# image: hummingbot/hummingbot:latest
image: hummingbot/hummingbot:latest-arm
# image: hummingbot/gateway:latest
image: hummingbot/gateway:latest-arm
Afterwards, save the file and proceed to the next step.
If you are using a Mac with an Intel (x86) chipset, Windows or any other Intel-based machine, you don't need to make any changes before deploying a container.
Getting Started
If you have installed Docker Compose successfully, the docker-compose command should be available in Terminal/Bash:
docker-compose
You should see a response that start with:
Usage: docker compose [OPTIONS] COMMAND
Clone this repo or copy the docker-compose.yml file to a directory on your machine where you want to store your Hummingbot files. This is where your encrypted keys, scripts, trades, configs, logs, and other files related to your bots will be saved.
To link the Hummingbot and Gateway instances, you first have to generate certificates within Hummingbot and set the GATEWAY_PASSPHRASE variable in the YAML file.
Generate certificates
Pull the latest Hummingbot and Gateway images and start instances with the following command:
docker-compose up -d
After the images have been downloaded, you should see the following output:
[+] Running 3/3
⠿ Network hummingbot_gateway_compose_default Created
⠿ Container hummingbot_gateway_compose-bot-1 Started
⠿ Container hummingbot_gateway_compose-gateway-1 Started
Attach to the Hummingbot instance:
docker attach hummingbot_gateway_compose-bot-1

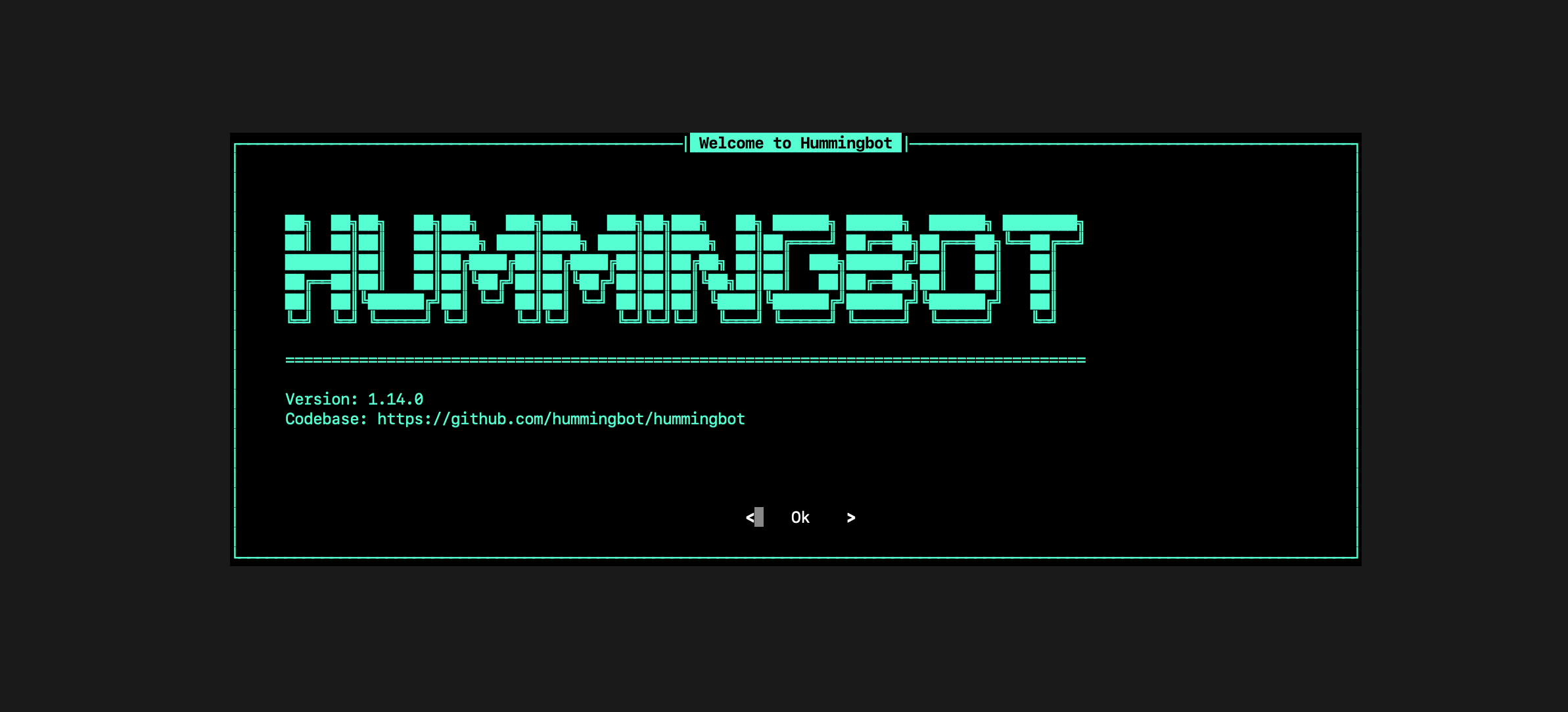

You should see the Hummingbot welcome screen:
Set your password, which will be used to encrypt any keys you store with Hummingbot.
Afterwards, run the following command to generate Gateway certificates:
gateway generate-certs
You'll be prompted for a passphrase used to generate the certificates. This is the GATEWAY_PASSPHRASE environment variable in your docker-compose.yml file.
Afterwards, Hummingbot will use the passphrase to generate the certificates and save them in the hummingbot_files/certs folder, where the Gateway instance will look for the certificates it needs.
Now, run stop to exit the client. Once you're back in Bash/Terminal, run the following command to remove the network:
docker-compose down
You should see the following output:
[+] Running 3/3 ⠿ Container hummingbot_gateway_compose-gateway-1 Removed
⠿ Container hummingbot_gateway_compose-bot-1 Removed
⠿ Network hummingbot_gateway_compose_default Removed
Modify YAML file
Now, use an IDE like VSCode to edit the docker-compose.yml file.
We'll edit the section that defines the Gateway environment variables:
# environment:
# - GATEWAY_PASSPHRASE=[passphrase]
Remove the '#' to uncomment out:
- The
environment:line - The
GATEWAY_PASSPHRASEline: add the passphrase you used to generate the certificates
The final environment section of the YAML file should look like this:
environment:
- GATEWAY_PASSPHRASE=[passphrase]
Afterwards, save the file.
Recreate container
Now, restart the container
docker-compose up -d
Attach to the Hummingbot instance:
docker attach hummingbot_gateway_compose-bot-1
After you enter your password, you should now see GATEWAY:ONLINE in the upper-right hand corner.
Open a new Terminal/Bash window. In it, attach to the Gateway instance to see its logs:
docker attach hummingbot_gateway_compose-gateway-1
See Gateway for more details on how to configure it for use with Hummingbot.
Useful Docker Commands
Use the commands below or use the Docker Desktop application to manage your Hummingbot and Gateway container:
Create the Compose network
docker-compose up -d
Attach to the Hummingbot container
docker attach hummingbot_gateway_compose-bot-1
Attach to the Gateway container
docker attach hummingbot_gateway_compose-gateway-1
Detach from the container and return to command line
Press keys Ctrl + P then Ctrl + Q
Update the container to the latest image
docker-compose up --force-recreate --build -d
List all containers
docker ps -a
Stop the Compose network
docker-compose down
Stop a container
docker stop <instance-name>
Remove a container
docker rm <instance-name>
